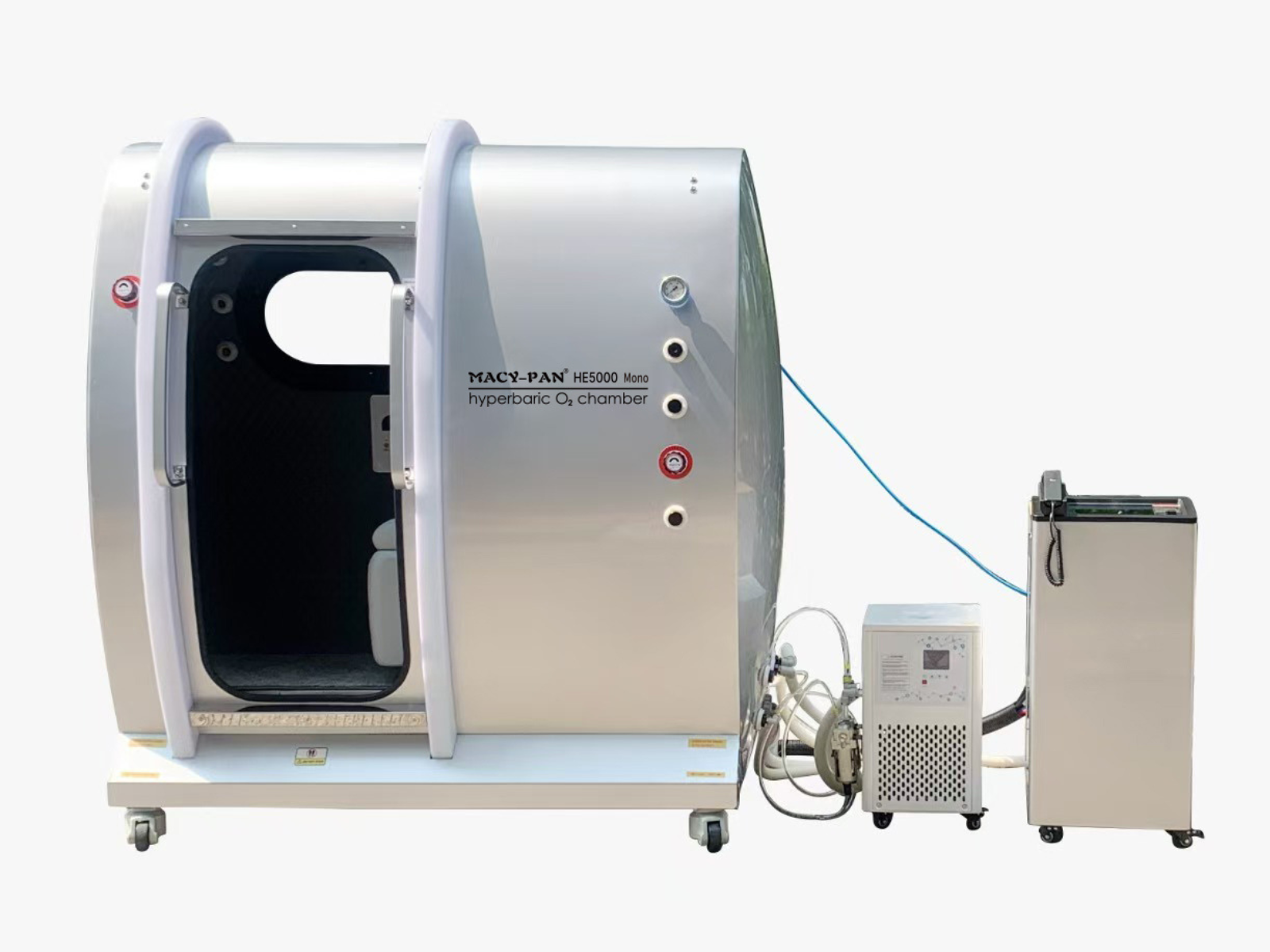

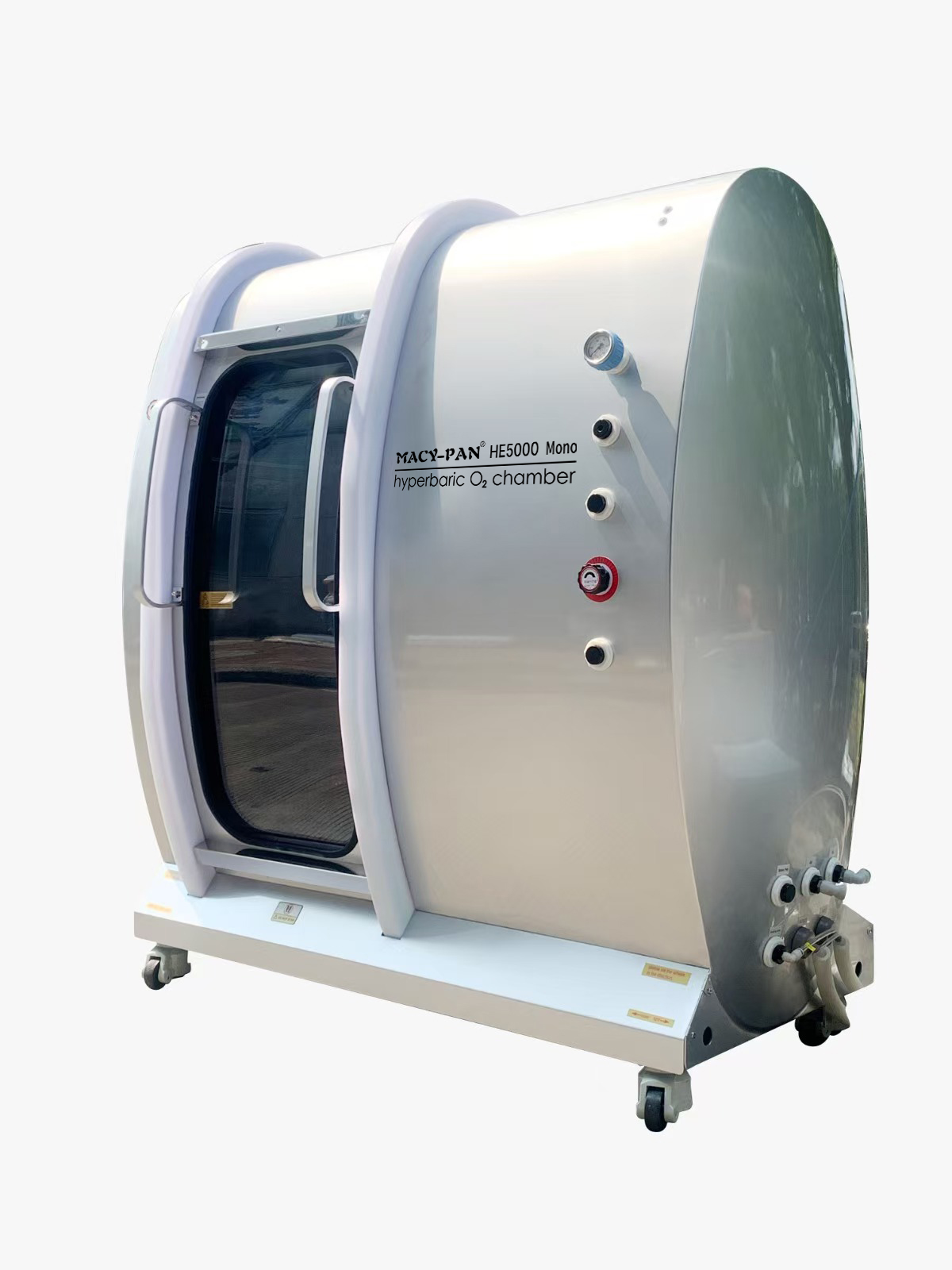

Macy Pan HE5000-Mono Hbot 2.0 Ata Hard Sitting Chamber vertical single person 35inch

Monoplace Hyperbaric Chamber

1 people can be treated interior seating at the same time

Inside the chamber, you can listen to music, read a book, use cell phones or laptops

Size:

174*88*188cm(69*34.7*74 inches)

Pressure:

2.0ATA

Model:

HE5000 Mono

Product Detail

Product Tags

Hyperbaric Oxygen Chamber Therapy

Conjugated oxygen, all organs of the body obtain oxygen under the action of respiration, but the molecules of oxygen are often too large to pass through the capillaries. In a normal environment, due to low pressure, low oxygen concentration, and decreased lung function, it is easy to cause body hypoxia.

Dissolved oxygen, in an environment of 1.3-1.5ATA, more oxygen dissolves in blood and body fluids (oxygen molecules are less than 5 microns). This allows the capillaries to carry more oxygen to the organs of the body. It is very difficult to increase dissolved oxygen in normal respiration, so we need hyperbaric oxygen.

MACY-PAN Hyperbaric Chamber For Adjuvant Treatment of Some Diseases

Your body's tissues need an adequate supply of oxygen to function. When tissue is injured, it requires even more oxygen to survive.

MACY-PAN Hyperbaric Chamber For Rapid Recovery After Exercise

Hyperbaric Oxygen Therapy is more and more favored by famous athletes all over the world, and they are also necessary for some sports gyms to help people recover faster from hard training.

MACY-PAN Hyperbaric Chamber For Family Health Management

Some patients need long-term hyperbaric oxygen therapy and for some sub-healthy people, we suggest that they buy MACY-PAN hyperbaric oxygen chambers for treatment at home.

MACY-PAN Hyperbaric Chamber For Beauty Salon Anti-aging

HBOT has been a growing choice of many top actors, actresses, and models, hyperbaric oxygen therapy may be the proverbial "fountain of youth."HBOT promotes cell repair, age spots saggy skin, wrinkles, poor collagen structure, and skin cell damage by increasing circulation to the most peripheral areas of the body, which is your skin.

Introducing our state-of-the-art pressure chamber, designed for optimal performance and user comfort. Operating at 2 ATA, this chamber ensures safety and durability through advanced integrated molding techniques.

Key Features:

External Features & Finishes: The exterior design of the He5000mono embodies the philosophy of "fusion of art and technology", transforming the hyperbaric chamber into a piece of art in modern home decor.

High-Grade Automotive Paint Finish: Utilizes the same baking paint process as top-tier automobiles, resulting in a full, high-gloss, hard, and corrosion-resistant finish. Multiple classic color options available to seamlessly blend into any home style.

Multi-Color Adjustable Ambient Lighting: Intelligent RGB ambient light strips are embedded in the chamber's base or contours. Users can freely switch between various colors and dynamic modes via remote control or mobile app, creating a technological, cozy, or romantic atmosphere.

Exclusive Custom Painting: Supports personalized exterior graphics. Custom logos, artistic patterns, or special colors can be applied based on user preference, creating a truly unique, one-of-a-kind personal hyperbaric chamber.

A Truly Versatile Oxygen Chamber

With silent settings

For 1-2 people to use

Factory direct sales Very cost-effective

Integrated molding

Oversized automatic

hatch

Air conditioner

is removable

2.0 ATA

Low/Medium/Highair

pressure switch

Internal and external intercom function

Automatic pressure boost and decompression device

Seven major security

settings

Flexible use of

multiple layouts

Specification

Product Name	Multiplace Hyperbaric Chamber 2.0 ATA
Type	Hard Shell Multiplace
Brand Name	MACY-PAN
Model	He5000Mono
Size	174cm88cm188cm(69″34.7″74″)
Weight	480kg
Chamber Material	Medical Grade SUS304 Stainless Steel
Door & Viewport Material	High Strength Polycarbonate(PC), High Transparency, Impact Resistant
Maximum Working Pressure	2.0 ATA / 2 Bar
Emergency Depressurization Rate	From 2.0 ATA to 1.0 ATA ≤ 60 seconds
Ventilation Rate	≥ 140 L/Min
Power	1800w
Noise Level	≤60dB
Working Pressure	100kPa
Touch Screen	10.1 inch LCD Screen(18.5 large screen upgradable)
Voltage	AC110V/220V(+10%); 50/60Hz
Environmental Temperature	-10°C-40°C; 20%~85%(Relative humidity)
Storage Temperature	-20°C-60°C
Application	Wellness, Sports, Beauty
Certificate	CE/ISO13485/ISO9001

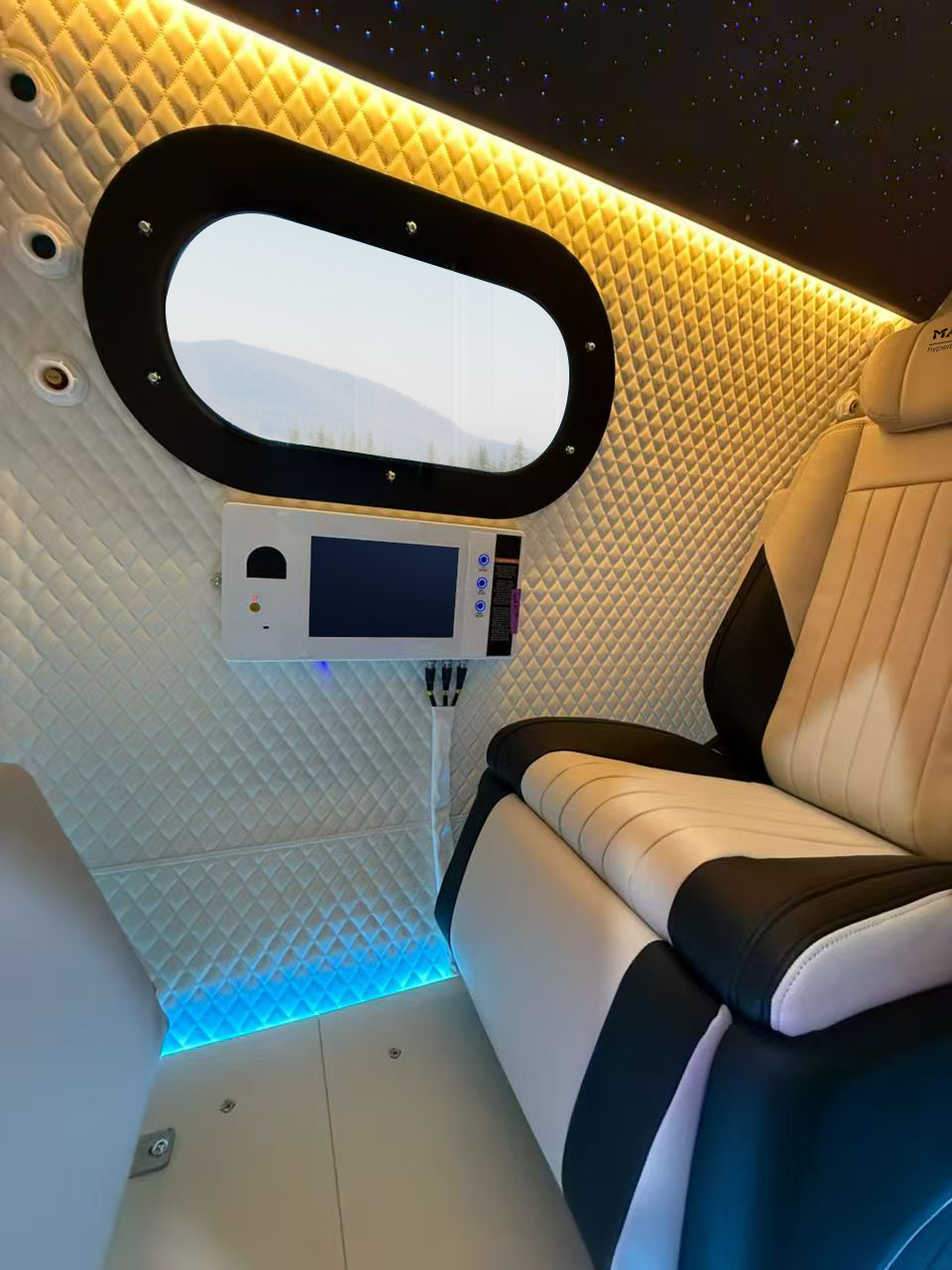

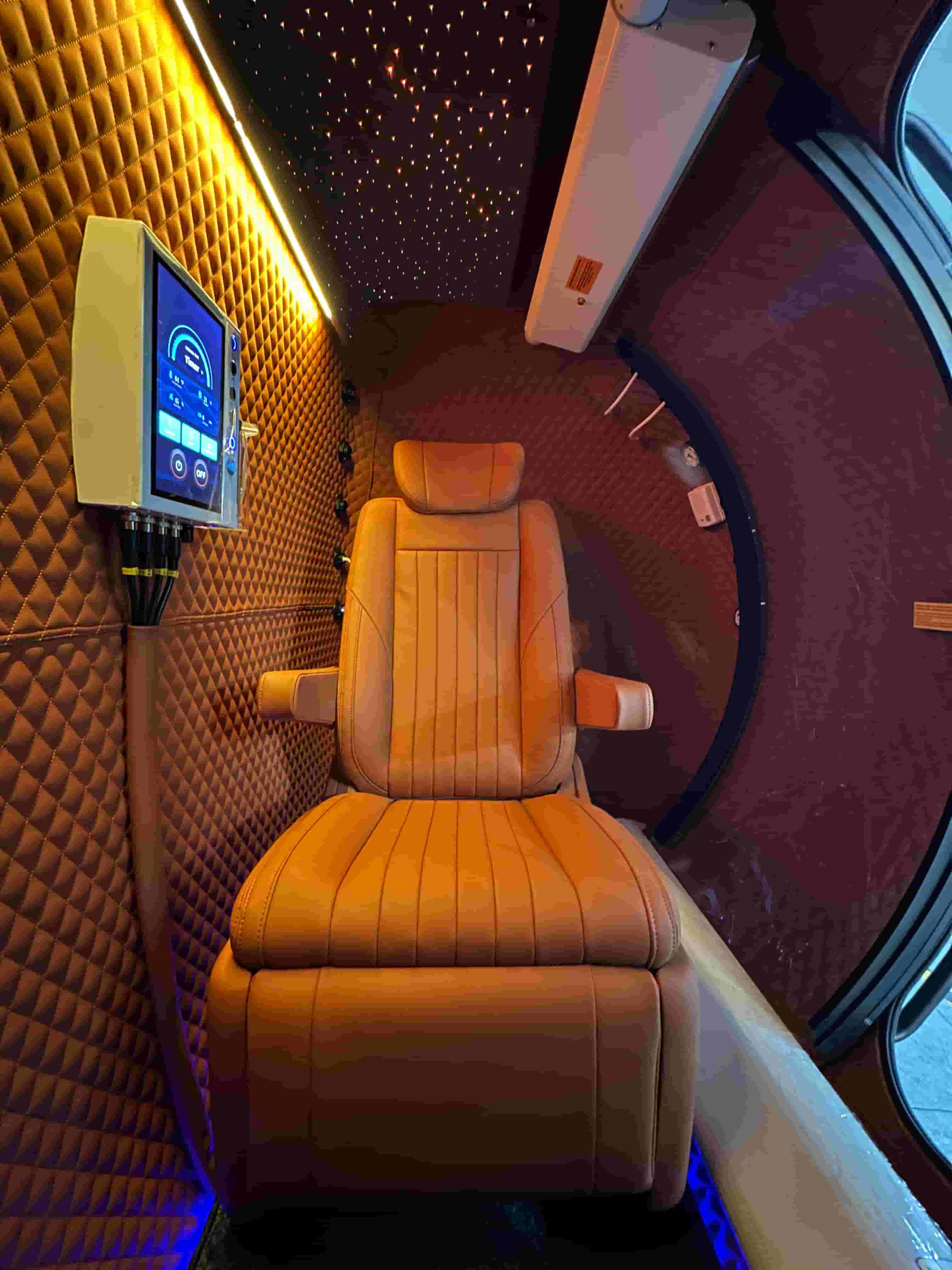

1.Premium Aviation Seat

Features an ergonomically designed, premium electric aviation seat supporting multiple angles (including a near-flat position) with electric adjustment. Built-in massage, ventilation, and heating functions provide ultimate relief from physical and mental fatigue.

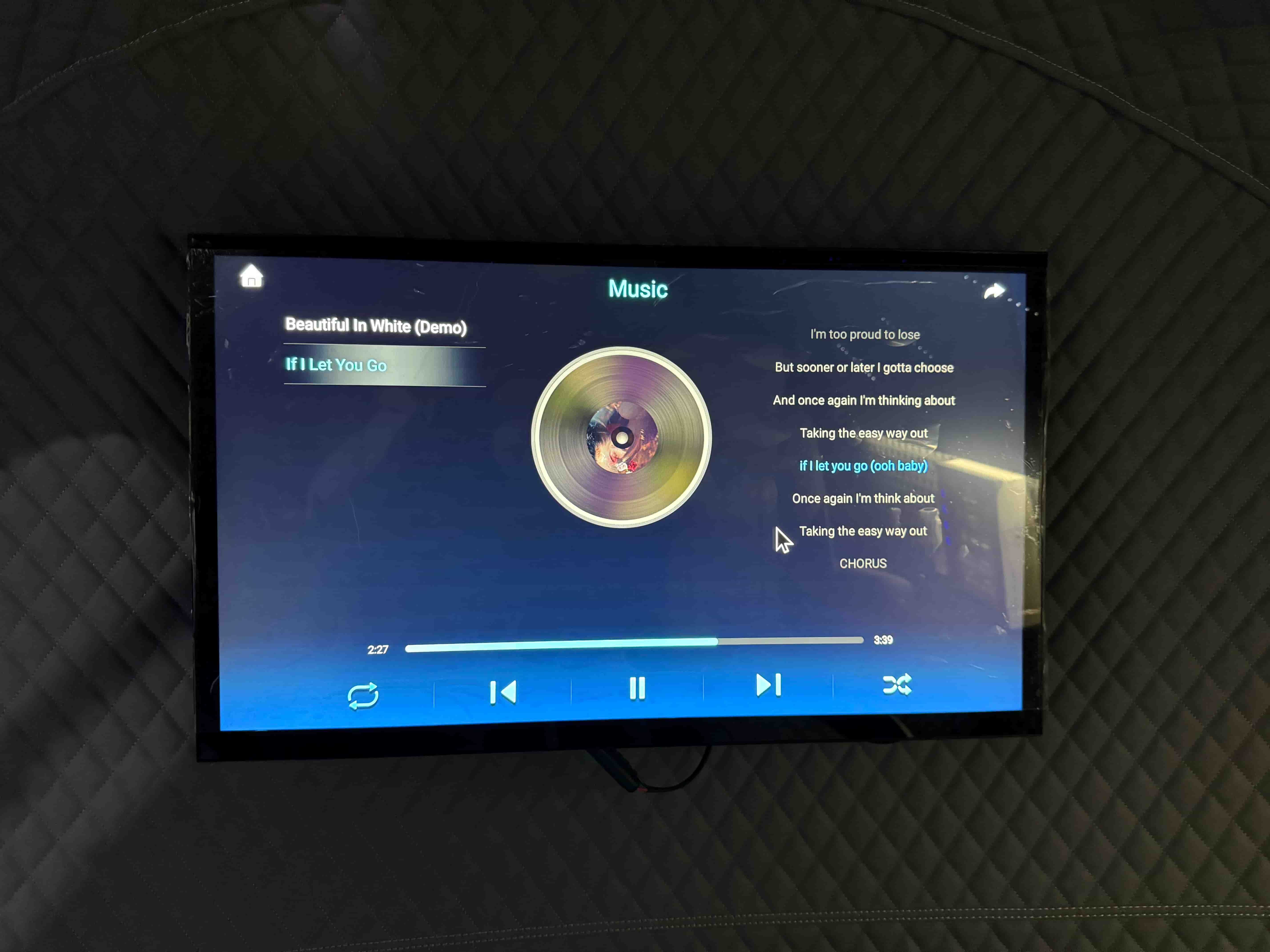

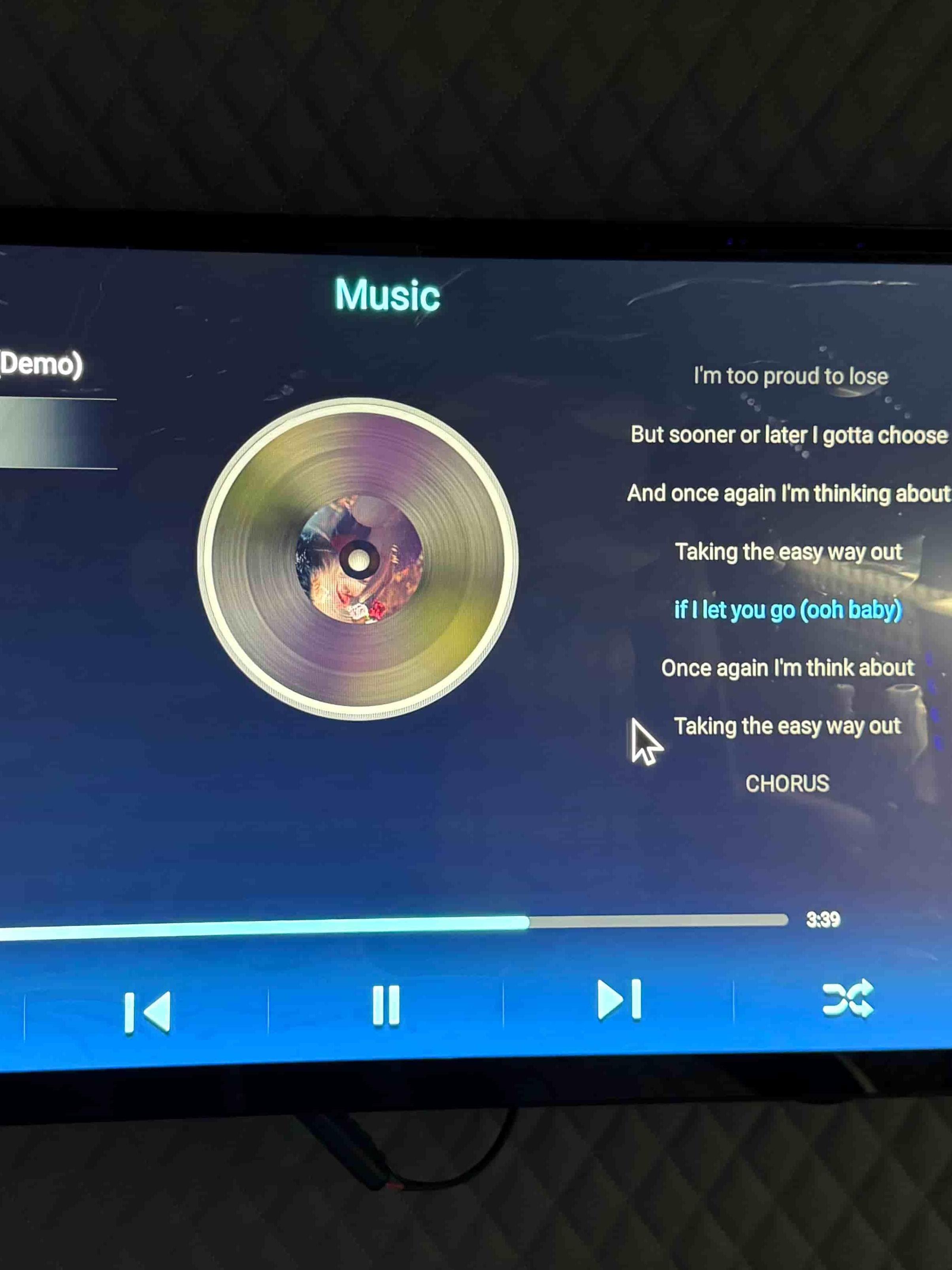

2.Immersive Audio-Visual Entertainment System

Built-in HD Internet TV: Connects to Wi-Fi for streaming online movies, TV shows, news, and other media content. Integrated High-Fidelity Sound System: Professionally tuned acoustics deliver surround sound for an immersive audio-visual experience.

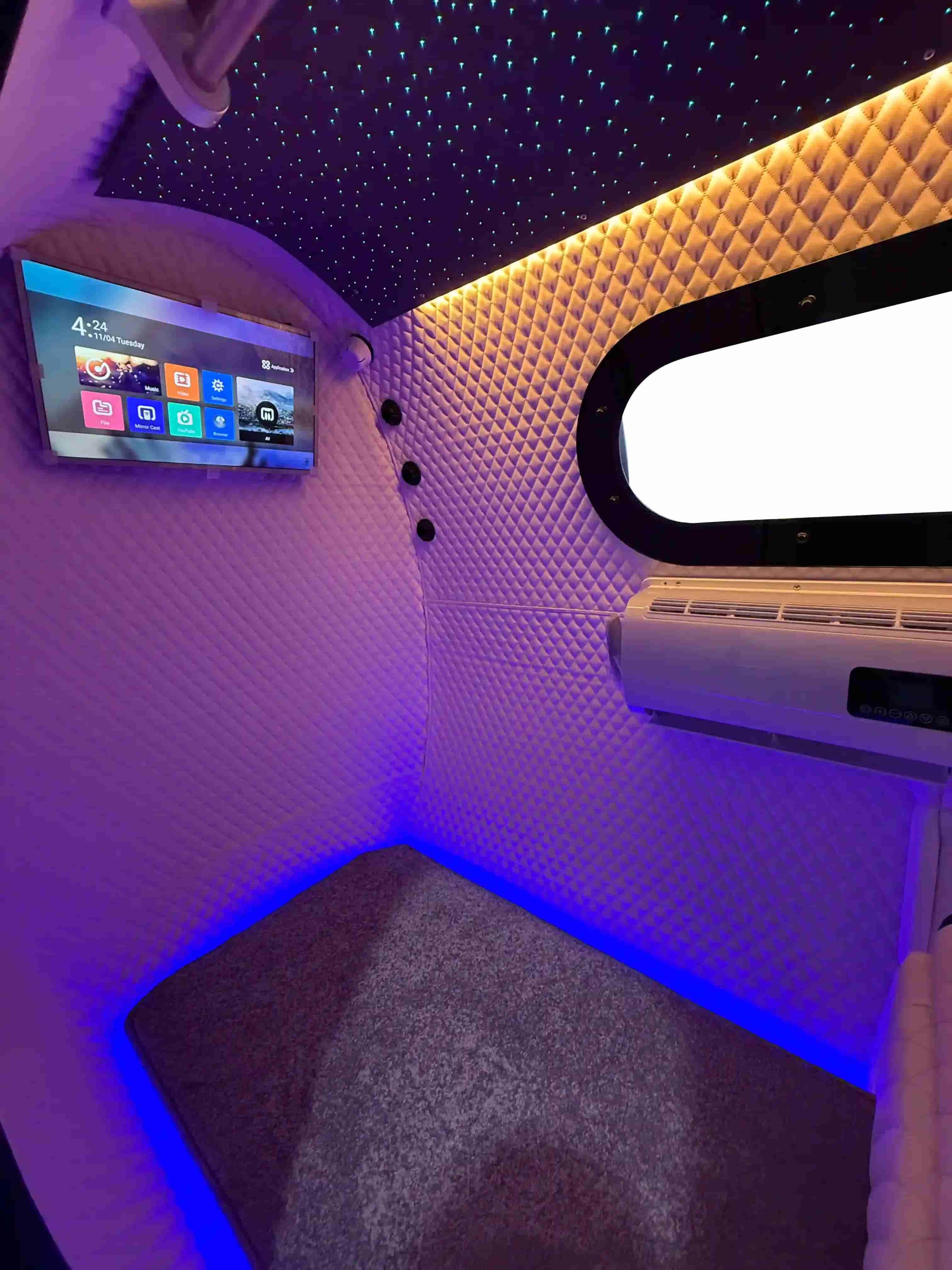

3.Smart Scenario Lighting

Beyond basic reading lamps, features a multi-zone, adjustable color temperature internal lighting system to suit various scenarios like reading, resting, or sleeping.

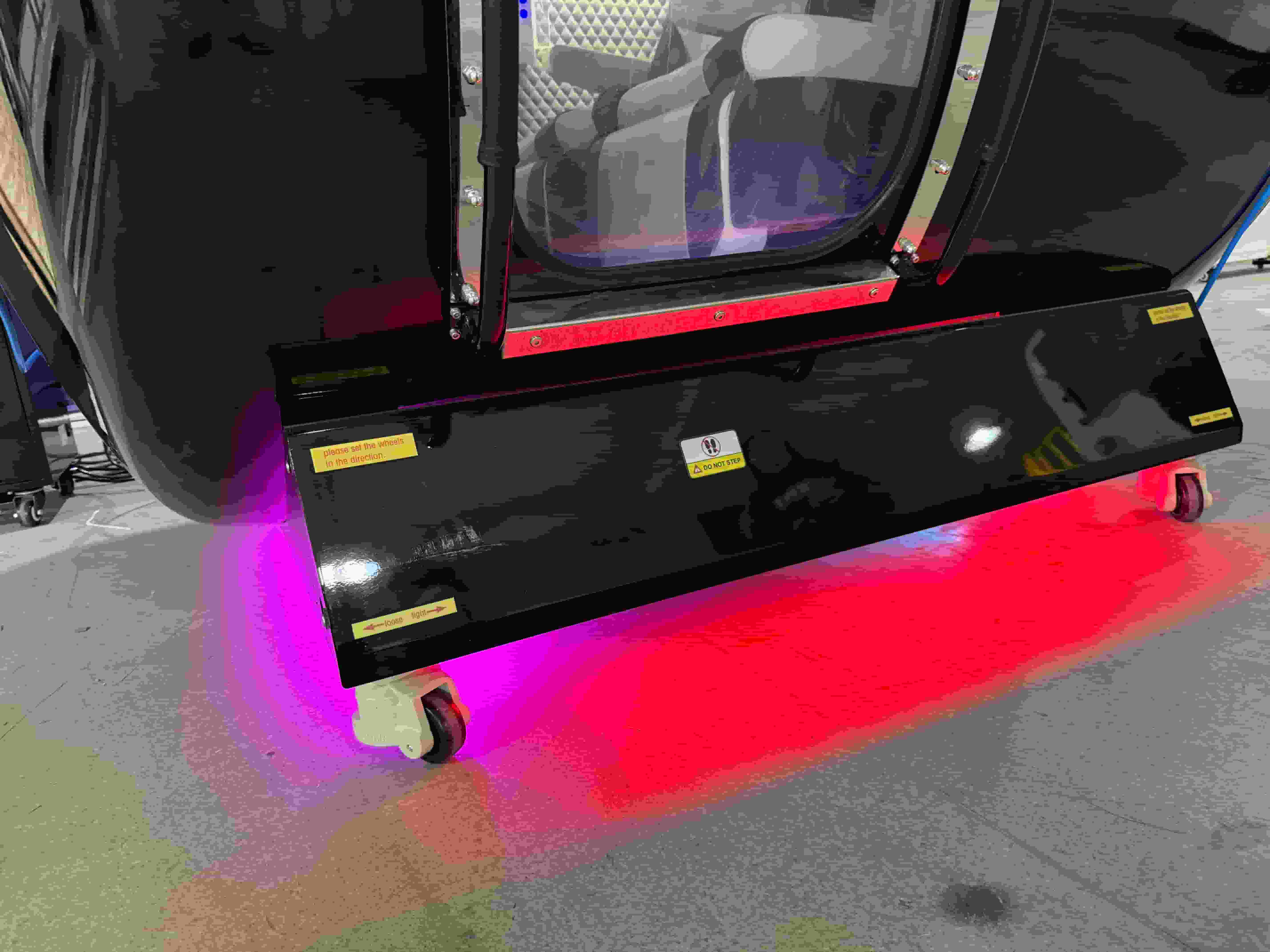

4.Dreamlike Ambient Lighting

Specially designed soft ambient lights in pink, blue, and other colors effectively help users relax, relieve stress, and enhance the therapeutic experience.

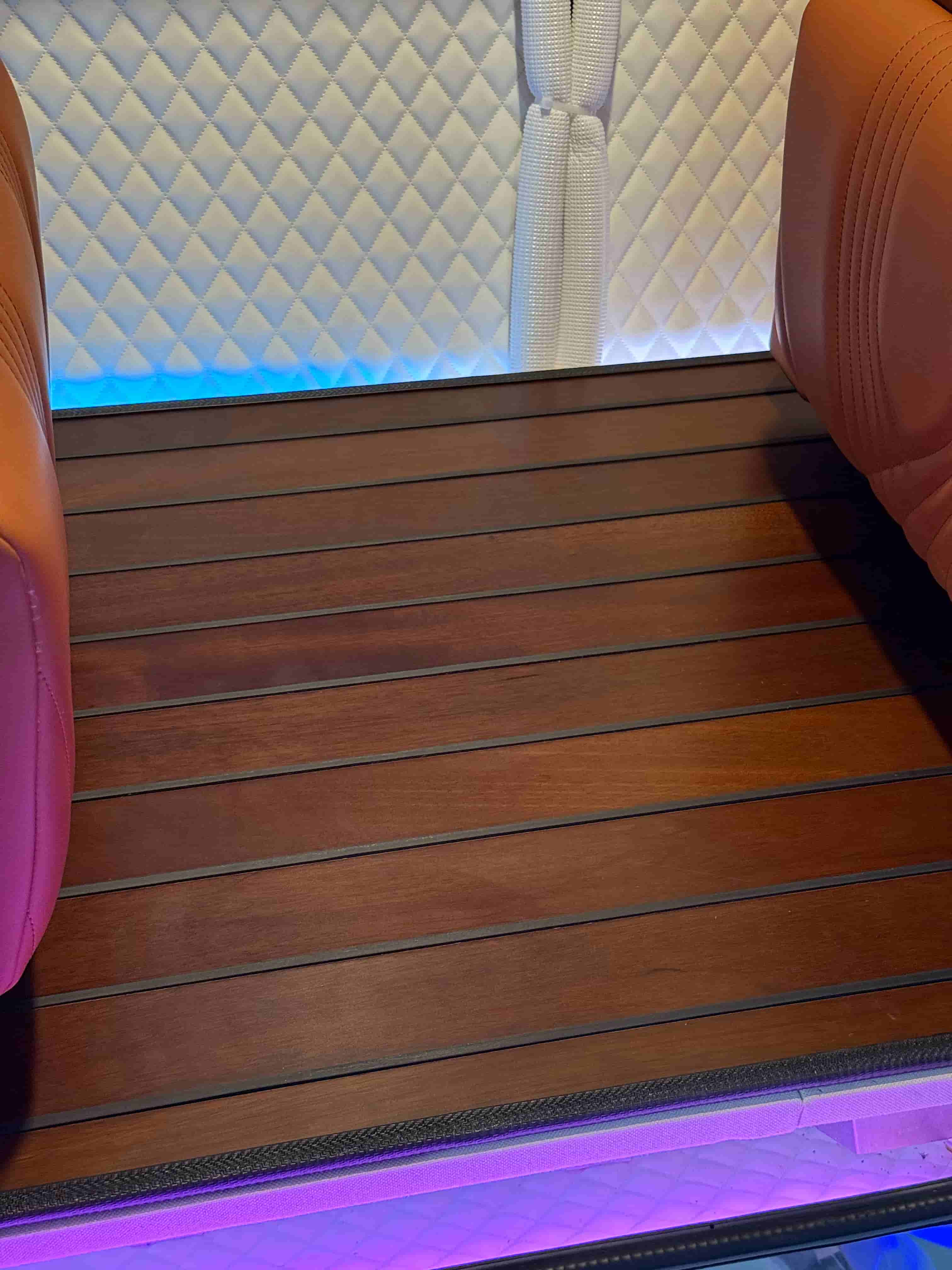

5.Luxurious Wood-Style Flooring

High-quality composite wood-style flooring with natural texture and comfortable feel enhances the overall interior ambiance and homely warmth.

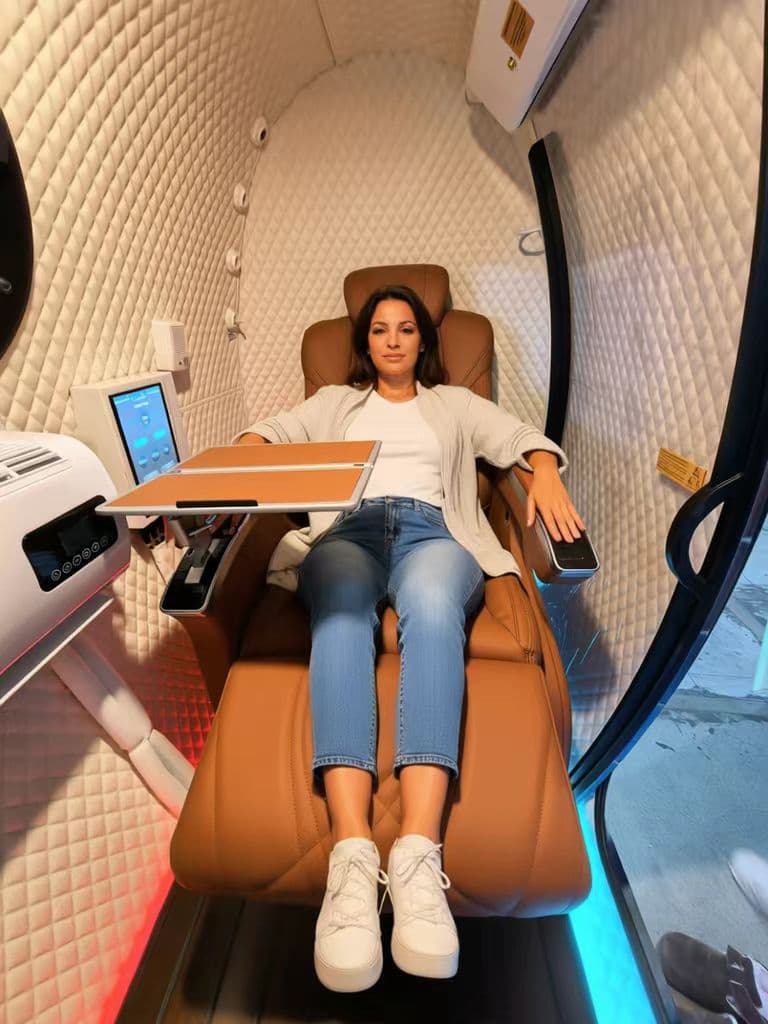

6.Negative lon Air Purification

Built-in negative ion generator continuously releases high concentrations of negative ions, effectively purifying the chamber air, eliminating odors, and making you feel as refreshed as being in a forest.

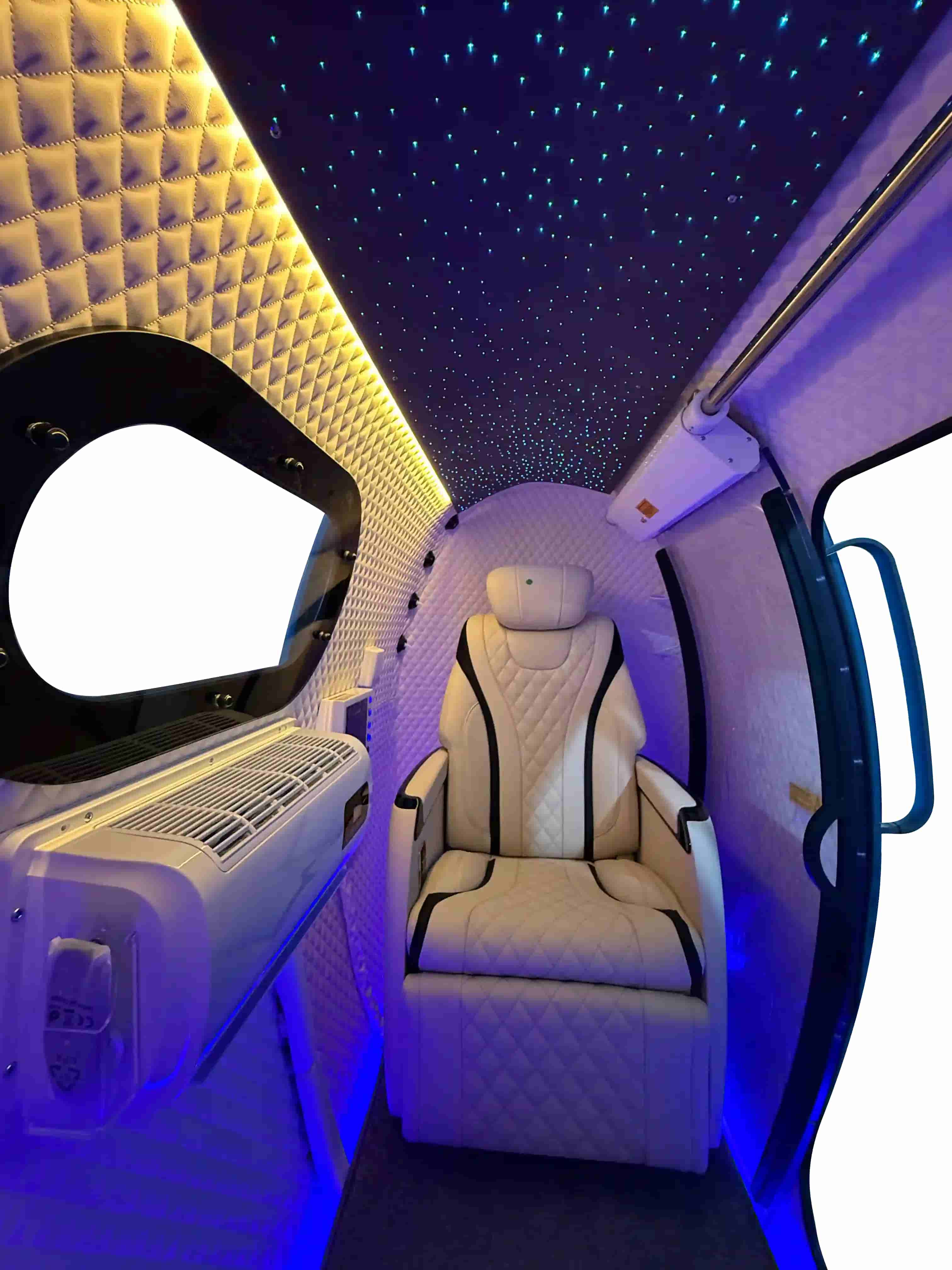

7.Interior Appointments & Comfort Systems

The interior space is a luxurious rest pod tailored for you, focusing on every detail to ensure each session is a physically and mentally pleasurable experience.

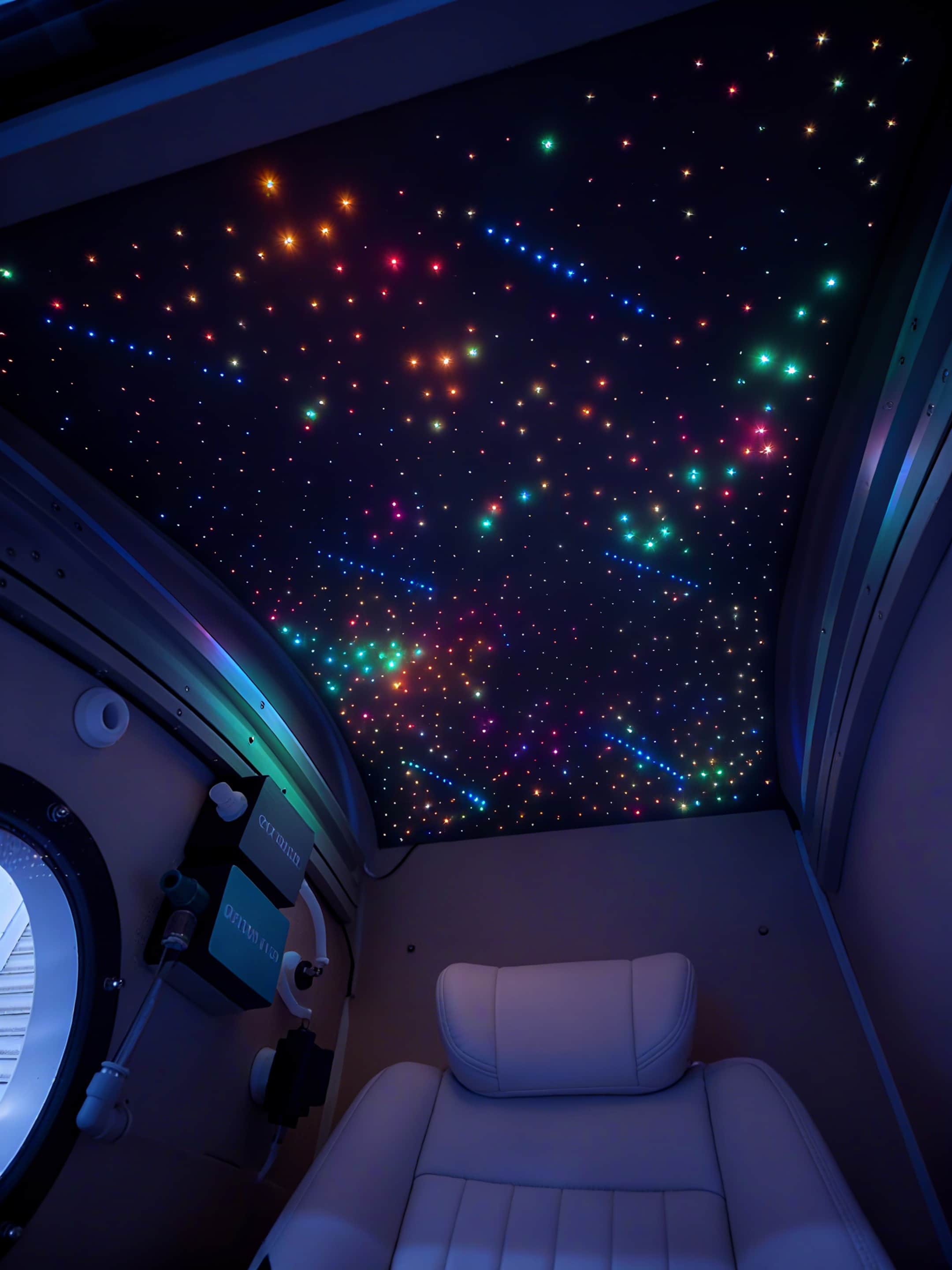

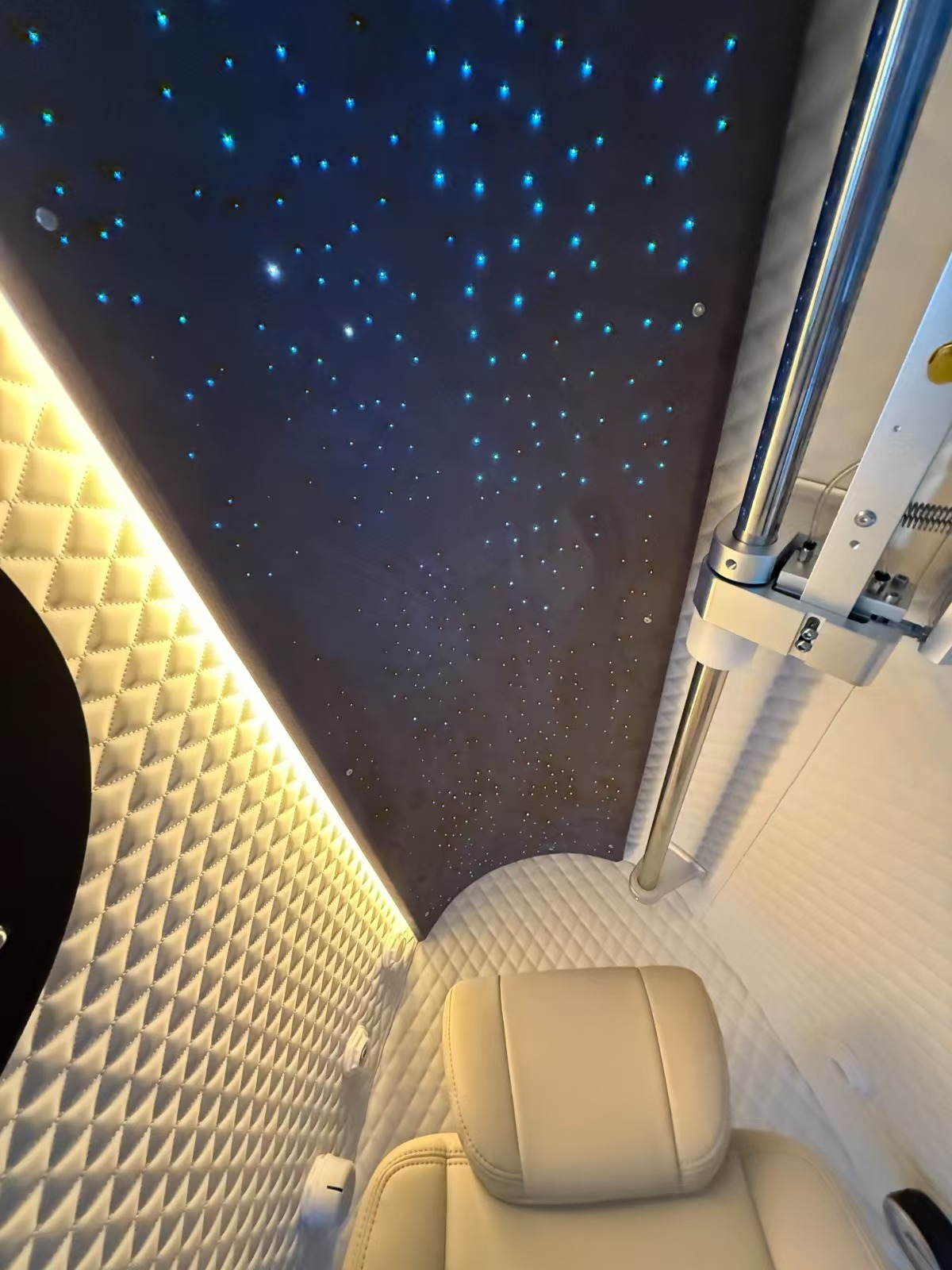

8.Starry Sky Ceiling

The ceiling simulates a vast starry sky. Different starry sky modes can be switched via smart control, allowing users to gaze at the "stars" while receiving oxygen therapy, achieving ultimate relaxation and meditation.

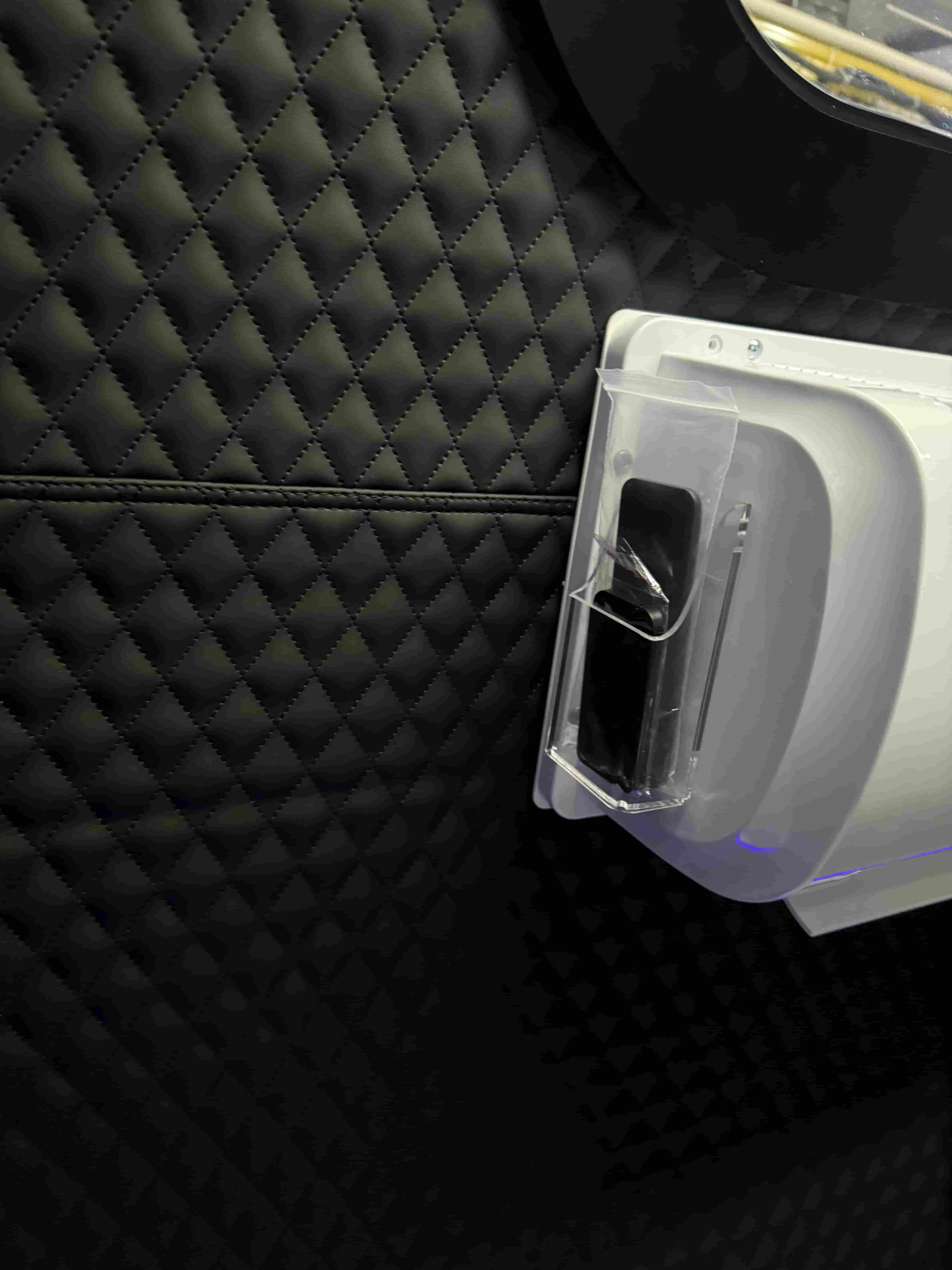

9.Eco-Friendly High-End Upholstery

Interior lining uses top-grade, eco-friendly leather, offering a soft, delicate touch. Non-toxic, odorless, and easy to clean, providing a safe and health user experience.

layout combinations use

Practical scene

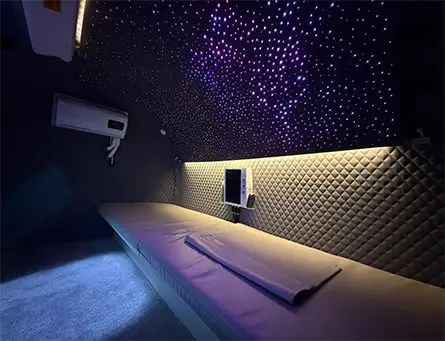

A large seat can be installed, allowing one person to enjoy a spacious area all to themselves.

Machines

Oxygen Supply System

Oxygen Supply Pressure	4.0 ATA / 4 Bar
Oxygen Supply Flow	20 L/Min
Oxygen Supply Purity	93%±3%
Internal Chamber Oxygen Concentration	≤ 23.5% (Safe Oxygen-Rich Environment)

Electrical System

Air Compressor Power	520W
Oxygen Generator Power	1600W
Air Conditioner Power	900W
