Macy-Pan HP1501 Right Side Door 1.5 Ata Lying Hyperbaric Oxygen Chamber Medical Equipments Hyperbaric Chamber
MACY-PAN’s hard hyperbaric chambers prioritize safety, durability, and user comfort, making them suitable for both professional practitioners and home users. Engineered for higher pressurization, these advanced systems are straightforward to operate, install, and maintain. The spacious interior, combined with luxury features, ensures a comfortable therapy experience. Users can easily initiate their sessions with just the push of a button, making hyperbaric therapy accessible and efficient.
Product information
| Product title | Hard Hyperbaric Chamber |
| Product specification | 1.5/1.6ATA |
| Product apply | Sports Medicine, Wellness and Anti-Aging, Cosmetic and Beauty, Neurological Applications, Medical Treatment |
| Product configuration | · Chamber cabin· All in one machine (Compressor&Oxygen concentrator) · Air Conditioner · Oxygen Masks, Headsets, Nasal Cannulas included to breathe oxygen directly |
MACY-PAN's hard hyperbaric chambers are crafted with safety, durability, comfort, and ease of access in mind, along with numerous advanced features. These chambers are ideal for both practitioners and home users who require a more sophisticated system capable of higher pressurization, yet still easy to operate, install, and maintain. Designed for single-user operation, you simply power it up, step inside, and start your therapeutic session with the press of a button. This system is loved by clients of all sizes for its spacious interior and luxurious experience, making it perfect for daily use.
For enhanced safety, the chambers include an emergency valve for rapid depressurization if needed, and an internal pressure gauge that allows users to monitor the pressure while inside the chamber. The dual control system, with both internal and external controls, adds to the ease of operation, making it convenient to start and stop sessions without assistance.
The slide-type entry door, coupled with a wide and transparent viewing window, not only facilitates easy access but also provides a clear view, adding to the user’s peace of mind. Furthermore, the inclusion of an interphone system allows for two-way communication during therapy sessions, ensuring that users can stay connected with others outside the chamber if necessary.
Product features
✅Operating Pressure: From 1.5 ATA to 2.0 ATA, providing effective therapeutic pressure levels.
✅Spacious and Luxurious: Available in four different sizes, ranging from 30 inches to 40 inches. Provides a roomy interior, offering a comfortable and luxurious experience for users of all sizes.
✅Slide-Type Entry Door: Comes with a slide-type entry door and a wide, convenient transparent viewing glass window for easy access and visibility, making it user-friendly for all.
✅Air Conditioning: Equipped with an water-cooled air conditioning system, ensuring a cool and comfortable environment inside the chamber.
✅Dual Control System: Features both internal and external control panels, enabling easy single-user operation for powering on and off the oxygen and air.
✅Interphone System: Includes an interphone system for two-way communication, allowing seamless interaction during therapy sessions.
✅Safety and Durability: Engineered with top priority on safety and long-lasting durability.
✅Single-User Operation: Easy to use—just power up, step inside, and start your session with a single button press.
✅Daily Use Suitability: Ideal for both practitioners and home users, perfect for everyday therapy sessions.
✅Research-Driven Design: Developed based on extensive research at the 1.5 ATA pressure level, ensuring top performance and effectiveness.
✅Emergency Valve: Equipped with an emergency valve for rapid depressurization in case of emergencies.
✅Oxygen Delivery: Offers the option to deliver 95% oxygen under pressure via a face mask for enhanced therapy.
| Product Name | Hard Hyperbaric Chamber 1.5 ATA |
| Type | Hard Lying Type |
| Brand Name | MACY-PAN |
| Model | HP1501 |
| Size | 220cm*90cm(90″*36″) |
| Weight | 170kg |
| Material | Stainless steel + Polycarbonate |
| Pressure | 1.5 ATA (7.3 PSI) / 1.6 ATA (8.7 PSI) |
| Oxygen Purity | 93%±3% |
| Oxygen Output Pressure | 135-700kPa, No Back Pressure |
| Oxygen Supply Type | PSA Type |
| Oxygen Flowrate | 10Lpm |
| Power | 1800w |
| Noise Level | 60dB |
| Working Pressure | 50kPa |
| Touch Screen | 7 inch LCD Screen |
| Voltage | AC220V(+10%);50/60Hz |
| Environmental Temperature | -10°C-40°C;20%~85%(Relative humidity) |
| Storage Temperature | -20°C-60°C |
| Application | Wellness, Sports, Beauty |
| Certificate | CE/ISO13485/ISO9001/ISO14001 |
The material of the hatch is PC(Polycarbonate), which is the same material as the police shield, and has the characteristics of high strength, corrosion resistance and high temperature resistance.
| Factor | Stainless Steel | Aluminum |
| Upfront Cost | 30-50% Higher (Material + Fabrication) | Lower (Lightweight, Easy To Shape) |
| Long-Term Value | Lower Maintenance, Longer Lifespan | Higher Upkeep (Anti-corrosion Checks) |
| Best For | Medical/commercial Heavy-use Chambers | Portable/home Low-Pressure Units |
Key Advantages of Stainless Steel VS Aluminum
✅ Unmatched Durability
Higher Strength: Stainless steel (304) offers 2-3x greater tensile strength (500-700 MPa) vs. aluminum (200-300 MPa), ensuring stability under repeated pressure cycles (critical for ≥2.0 ATA chambers).
Resists Deformation: Less prone to stress fatigue or micro-cracks compared to aluminum, which may warp over time.
✅ Superior Corrosion Resistance
Safe for High-Oxygen Environments: Does not oxidize or degrade in 95%+ O₂ settings (unlike aluminum, which forms porous oxide layers).
Withstands Frequent Sterilization: Compatible with harsh disinfectants (e.g., hydrogen peroxide), while aluminum corrodes with chlorine-based cleaners.
✅ Enhanced Safety
Fire-Resistant: Melting point >1400°C (vs. aluminum’s 660°C), critical for high-pressure pure oxygen use (NFPA 99 compliant).
✅ Longer Lifespan
20+ years of service life (vs. 10-15 years for aluminum), especially at weld points where aluminum fatigues faster.
✅ Hygienic & Low-Maintenance
Mirror-polished surface (Ra≤0.8μm): Reduces bacterial adhesion and simplifies cleaning.

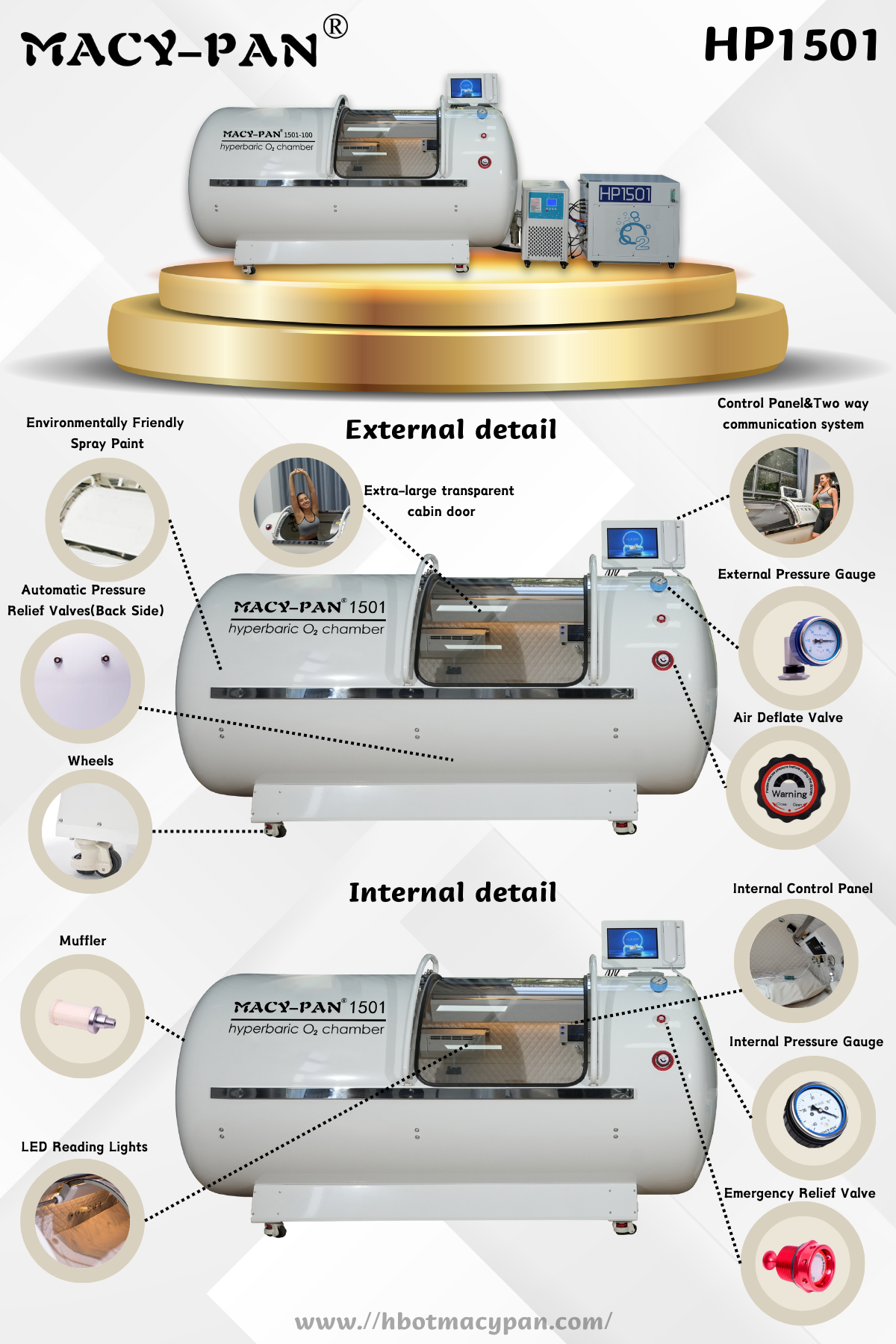

Oxygen mask
Oxygen headset
Oxygen nasal tube
Emergency pressure reducing valve
Safe and secure, quality assurance.
Chamber door
Manual pressure reducing valve
Pulley
Control unit
Air conditioner
|
Item
|
Control unit | Air conditioner |
| Model | BOYT1501-10L | HX-010 |
| Machine size | 76*42*72cm | 76*42*72cm |
| Gross weight of machine | 90kg | 32kg |
| Rated voltage | 110V 60Hz 220V 50Hz | 110V 60Hz 220V 50Hz |
| Input power | 1300W | 300W |
| Input flow rate | 70L/min | / |
| Oxygen production flow rate | 5L/min or 10L/min | / |
| Machine material | Ferroalloy(Surface coating) | Stainless steelspray |
| Machine noise | ≤60dB | ≤60dB |
| Components | Power cord, Flow meter, Connection air tube | Power cord Connecting pipe, Water collector, Air conditioning unit |
Hyperbaric Oxygen Chamber Therapy
Conjugated oxygen, all organs of the body obtain oxygen under the action of respiration, but the molecules of oxygen are often too large to pass through the capillaries. In a normal environment, due to low pressure, low oxygen concentration, and decreased lung function, it is easy to cause body hypoxia.
Dissolved oxygen, in an environment of 1.3-1.5ATA, more oxygen dissolves in blood and body fluids (oxygen molecules are less than 5 microns). This allows the capillaries to carry more oxygen to the organs of the body. It is very difficult to increase dissolved oxygen in normal respiration, so we need hyperbaric oxygen.
MACY-PAN Hyperbaric Chamber For Adjuvant Treatment of Some Diseases
Your body's tissues need an adequate supply of oxygen to function. When tissue is injured, it requires even more oxygen to survive.
MACY-PAN Hyperbaric Chamber For Rapid Recovery After Exercise
Hyperbaric Oxygen Therapy is more and more favored by famous athletes all over the world, and they are also necessary for some sports gyms to help people recover faster from hard training.
MACY-PAN Hyperbaric Chamber For Family Health Management
Some patients need long-term hyperbaric oxygen therapy and for some sub-healthy people, we suggest that they buy MACY-PAN hyperbaric oxygen chambers for treatment at home.
MACY-PAN Hyperbaric Chamber For Beauty Salon Anti-aging
HBOT has been a growing choice of many top actors, actresses, and models, hyperbaric oxygen therapy may be the proverbial "fountain of youth."HBOT promotes cell repair, age spots saggy skin, wrinkles, poor collagen structure, and skin cell damage by increasing circulation to the most peripheral areas of the body, which is your skin.
